Temperature Measurement for Compliance and Safety

How a thermocouple Work

When you’re designing a new product, reliable thermocouple temperature measurement is non-negotiable for compliance and operational safety. Temperature is a critical parameter. It is fundamental in determining how hot surfaces are. Monitoring ensures materials perform as expected. It also helps maintain electrical safety.

In the world of regulatory requirements, certification, and product performance, this measurement is often get trough the thermocouple. This simple device plays a vital role in everything from ensuring your oven bakes correctly to verifying correct temperature limits in type testing.

You hare here to know, what exactly is a thermocouple, and which one is the right fit for your application? In this article, we’ll explain the different types and discuss their specific intended uses.

The Science Behind the Sensor

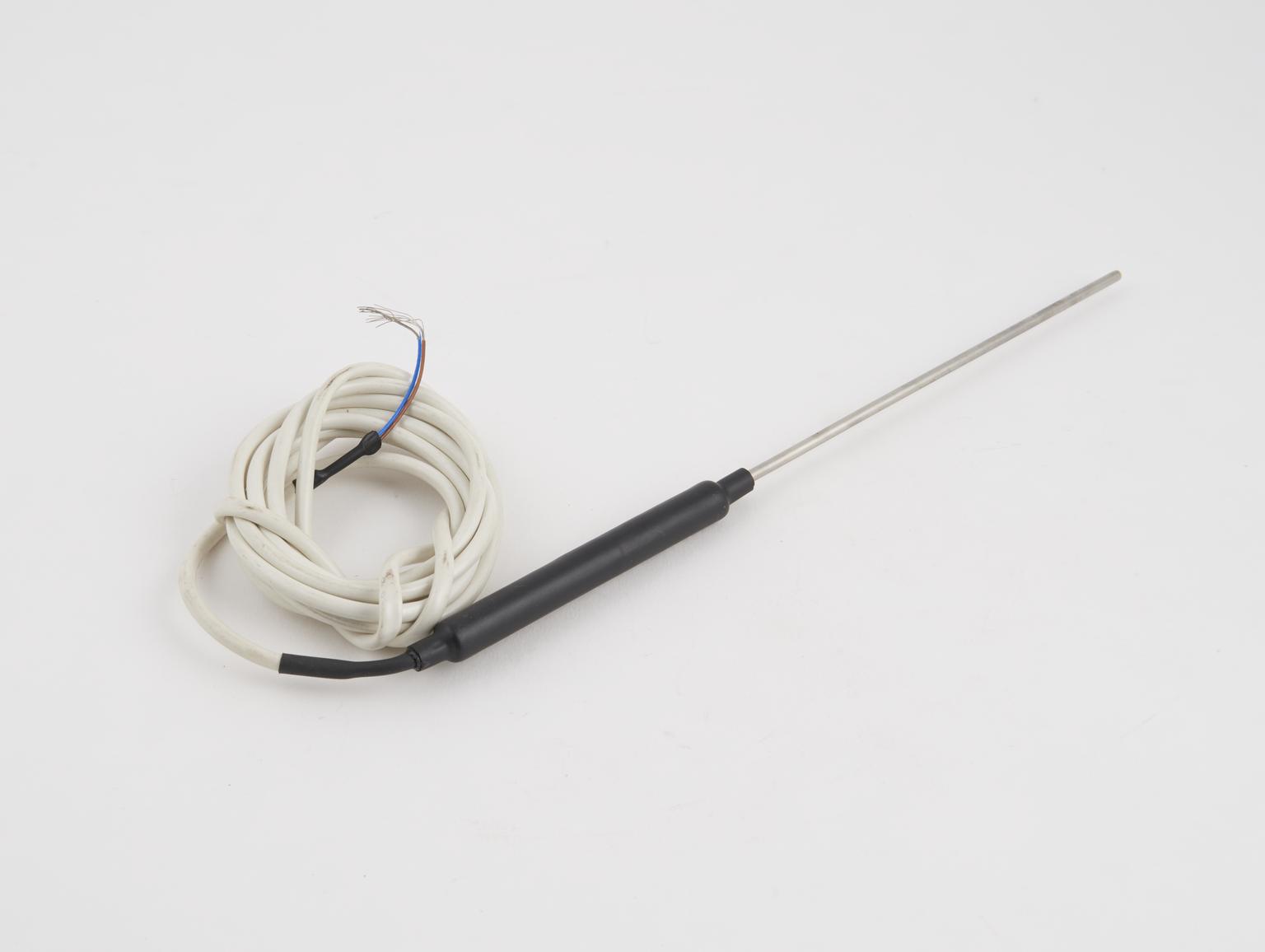

A thermocouple is an indirect temperature-measuring sensor consisting of two dissimilar electrical conductors jointed together at one end. This node forms an electrical junctions called “hot end”, that will be placed on the point we want to measure. The other unterminated end of the thermocouple, or “cold end”, is connected to the measuring device.

When the junctions are at different temperatures, a voltage is generated. This is known as the Seebeck effect. This is because electrons in the metals move. Since the metals are different, their electrons move at different speeds, creating a charge difference.This tiny voltage can then be measured and converted into a reliable temperature reading.

The choice of metals determines the thermocouple Type, which dictates its temperature range, accuracy, and suitability for different environments. Getting this choice wrong can lead to inaccurate data, non-compliant products, or even catastrophic safety failures.

Thermocouple Types Chart: K, J, T, and E Explained

Standard thermocouples are typically designated by a letter (e.g., J, K, T) that corresponds to the specific metal alloys used in their construction. Understanding the properties of these common types is fundamental for any safety or quality technician.

Here are the most common standard thermocouples and where they shine in compliance and process control:

• Type K (Chromel / Alumel): This is the most common type due to its wide temperature range and low cost.
  • Intended Use: General-purpose applications, especially in industrial processes, furnaces, and ovens. Its good corrosion resistance makes it suitable for many environments. Look for Type K in many heating, ventilation, and air conditioning (HVAC) systems and general equipment certification testing.
• Type J (Iron / Constantan): Often preferred for its higher output and better accuracy at lower temperatures compared to Type K.
  • Intended Use: High-temperature vacuum applications and neutral atmospheres. It has a narrower temperature range than Type K and the Iron wire is susceptible to rust, so it’s not ideal in moist environments.
• Type T (Copper / Constantan): Excellent for low and cryogenic temperatures. It offers superior stability and repeatability in the low-temperature range.
  • Intended Use: Cryogenics, food processing, and laboratory testing where high accuracy at temperatures below 0∘C0^{\circ}C is critical. This type is often used in medical device qualification and food safety monitoring.
• Type E (Nickel-Chromium / Constantan): Provides the highest output (voltage change per degree) of the common types, making it the most sensitive.
  • Intended Use: Used when high precision is required in a moderate temperature range. Its sensitivity is advantageous in applications requiring tight temperature control.
• Type N (Nicrosil / Nisil): This type offers better stability and oxidation resistance at high temperatures than Type K, making it a good, more expensive substitute for Type K in demanding environments.
  • Intended Use: High-temperature furnace and kiln monitoring, replacing Type K in applications where long-term high-temperature stability is paramount for regulatory reporting.

---

The selection involves considering the atmosphere the thermocouple will be exposed to (oxidizing, reducing, vacuum, inert). The required response time, and the needed level of accuracy and tolerance limits also plays a role.

High-Temperature & Noble Metal Types

For extreme temperatures, such as those found in some aerospace or specialized industrial applications, base metal thermocouples simply won’t survive. This is where the Noble Metal and Refractory Metal types come into play. These are generally much more expensive due to the materials used.

• Type R and S (Platinum-Rhodium / Platinum): These types use platinum alloys and are extremely stable and accurate at very high temperatures (up to $\approx 1600^{\circ}C$).
  • Intended Use: Calibration standards, extremely high-temperature monitoring in the glass and semiconductor industries. These sensors often define the upper limits of reliable temperature measurement for certification equipment.
• Type B (Platinum-Rhodium / Platinum-Rhodium): Offers an even higher temperature limit than R or S and is unique in that it produces almost no voltage output below $50^{\circ}C$.
  • Intended Use: Continuous high-temperature measurement in applications like molten metal pouring. It is also used in large-scale furnace control where temperatures rarely drop below the ambient range.

Manufacturing the Sensor: From Raw Wire to Precision Junction

To create a fully functional TC, you need to solder effectively the hot end. In an industrial or laboratory setting, the manufacturing process focuses on ensuring the junction is consistent, mechanically robust, and free from contaminants that could skew the Seebeck voltage. For high-quality certification testing, sensors are often fabricated from calibrated spools of wire where the metallurgical purity is tightly controlled.

The most critical step in construction is the formation of the “hot junction.” While there are several ways to join the wires, the method chosen impacts the sensor’s longevity and accuracy in high-stakes compliance environments.

• Bead Welding: This is the gold standard. Use a capacitive discharge welder or an argon-arc (TIG) welder, the two wires are fused into a small, uniform bead. This provides the strongest mechanical bond and the best thermal conductivity.
• Twisting: common in “quick and dirty” setups, simply twisting wires is discouraged for regulatory testing. The unstable connection creates an intermittent or high-resistance contact, leading to “ghost” readings that can fail a safety audit.
• Soldering: You can solder a thermocouple junction, but the solder itself becomes a third metal in the circuit. Only when the wole area is at a uniform temperature, the physics hold up. The maximum temperature is strictly limited by the solder’s melting point (around 180°C to 230°C for standard alloys).

---

💡 Technician’s Tip for Electrical Safety and EMC

Once you formed the junction, you must decide on the insulation and sheathing. You often need “fine-wire” thermocouples (30 AWG or thinner). These help minimize the “heat sink” effect. The sensor itself should not draw heat away from the component you are trying to measure.

When measuring a thermocouple, remember that the tiny voltage signal is susceptible to Electromagnetic Compatibility (EMC) noise. Always use shielded extension wire of the correct type, and ensure proper grounding to prevent noise. A noisy signal is a useless signal when proving compliance.

Thermocouple Attachment Methods for Safety Compliance

In the world of certification, it is not enough to just “tape it on”. Standards like IEC 60335 (Household Appliances) and IEC 62368 (Information Tecnology) have specific requirements for how temperatures are measured. The goal is to measure the hottest point of a component without changing its thermal characteristics. IECEE OD-5012 provides detailed information on how to make a correct measurement. You can better understand it in this article.

Properly attaching a thermocouple according to regulatory best practices requires a balance of mechanical security and thermal intimacy. If the sensor isn’t perfectly coupled to the surface, you will measure the surrounding air, leading to inaccurate “pass” results.

For example, this video provides a practical demonstration of how to prepare and attach thermocouples to discrete components.

Here some critical point to take care during testing

• Soldering to the Component: For PCB traces or terminals, the most accurate method is often to solder the thermocouple bead directly to the solder joint of the component. Use a high-temperature solder (like Sn96.5/Ag3.0/Cu0.5) so the sensor doesn’t fall off during the heat run.
• Adhesives and Epoxies: When measuring plastic enclosures or non-solderable parts, thermally conductive epoxy is preferred. This ensures there is no air gap between the sensor and the surface.
• Mechanical Fixing: In some cases, a small screw or clamp might be used, but you must ensure that the mass of the clamp doesn’t act as a radiator.
• Aluminum/Kapton Tape: For general surface measurements, a small piece of aluminum tape provides good thermal transfer. Avoid using layers of Kapton tape directly over the bead, as it can “blanket” the sensor and cause incorrect readings.

---

Before starting your 4-hour heat run, always perform a “tug test” and a quick polarity check. Nothing is more frustrating than starting a test and find that a thermocouple has detached or was wired backward.

💡 Technician’s Tip: The “Heat Sink” Trap

One of the most common mistakes I see newcomers make is using heavy-gauge thermocouple wire on tiny SMD components. The thick wire acts like a cooling fin, pulling heat away from the component and giving you a reading that is 10-15°C lower than the actual temperature. For small components, always use 30 AWG or 36 AWG wire to ensure your safety data is honest.

Frequently Asked Questions: Thermocouples in Compliance Testing

Final Thoughts on Choosing the Right Sensor

Choosing the right thermocouple is a critical first step in achieving reliable temperature control and meeting your regulatory obligations. Before you decide on a Type K because it’s the most common, check the specific standard for your product (e.g., IEC 60335 for appliances often specifies a temperature limit). Does the standard allow for the error tolerance of the sensor at that temperature?
